Description
The T-Echo is a version evolved from LILYGO T-BEAM.
At the beginning of the design, more consideration was to adapt to Meshtastic and SotfRF, so Bluetooth and low power consumption
were considered when designing, and NRF52840 Advanced Bluetooth 5 was selected Thread and Zigbeemultiprotocol SoC.
The LORA function continues T-BEAM’s LILYGO SX1262 version functional module.
T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, working in the 868/915MHz ISM
frequency band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm,
receiving sensitivity -139dBm.
Automatic transceiver Switching, internal transmission and reception channel isolation, advanced LORA spread spectrum
communication technology, strong anti-interference and privacy, can realize long-distance wireless data transmission and
reception.
Note: Be sure to confirm the model to avoid misunderstandings.
T-Echo SoftRF is the basic version. You can choose the Meshtastic or BME280 version as needed.
– Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint
positioning and single system independent positioning, support AGNSS function, built-in low noise amplifier and surface filter,
can provide users GNSS module with fast, accurate and high-performance positioning experience.
– Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible
and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban
environments.
– It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can
achieve high sensitivity, high-precision positioning and fast signal capture and tracking, even under weak signal conditions can
also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the
module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module
and the active antenna from damage.
– The display uses a 1.54-inch electronic paper display with front light, 200×200 resolution 1.54 front LED E-paper, and it can be
used in a dark environment.

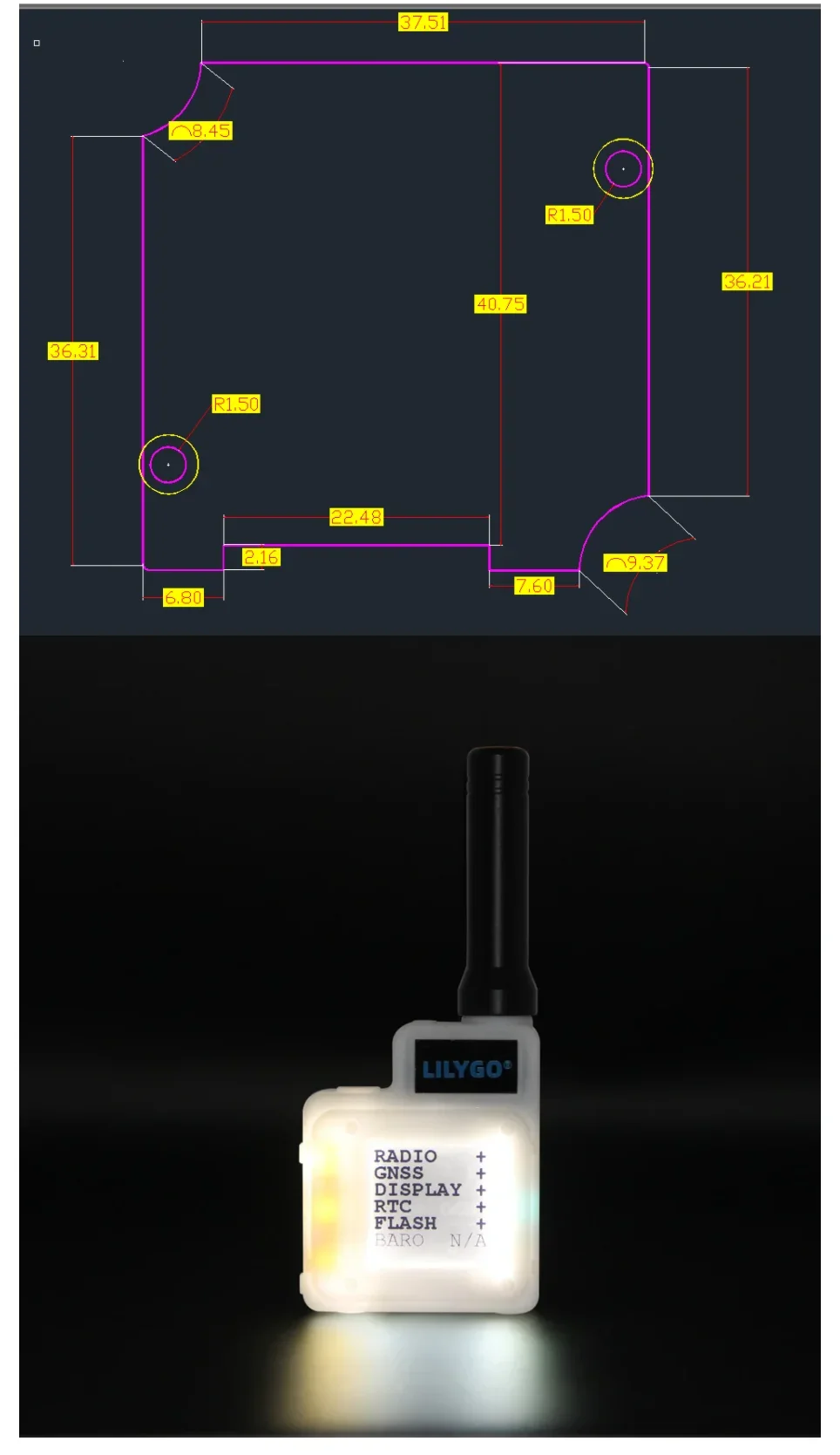

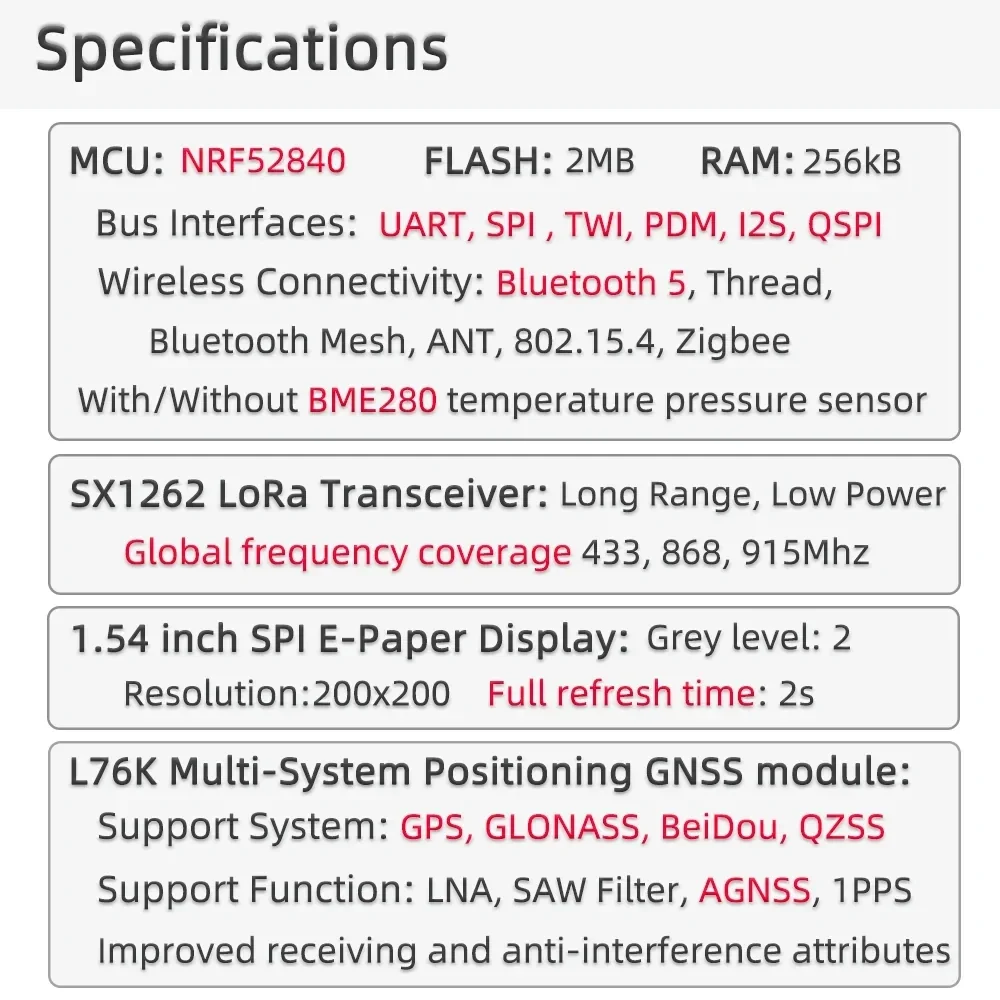

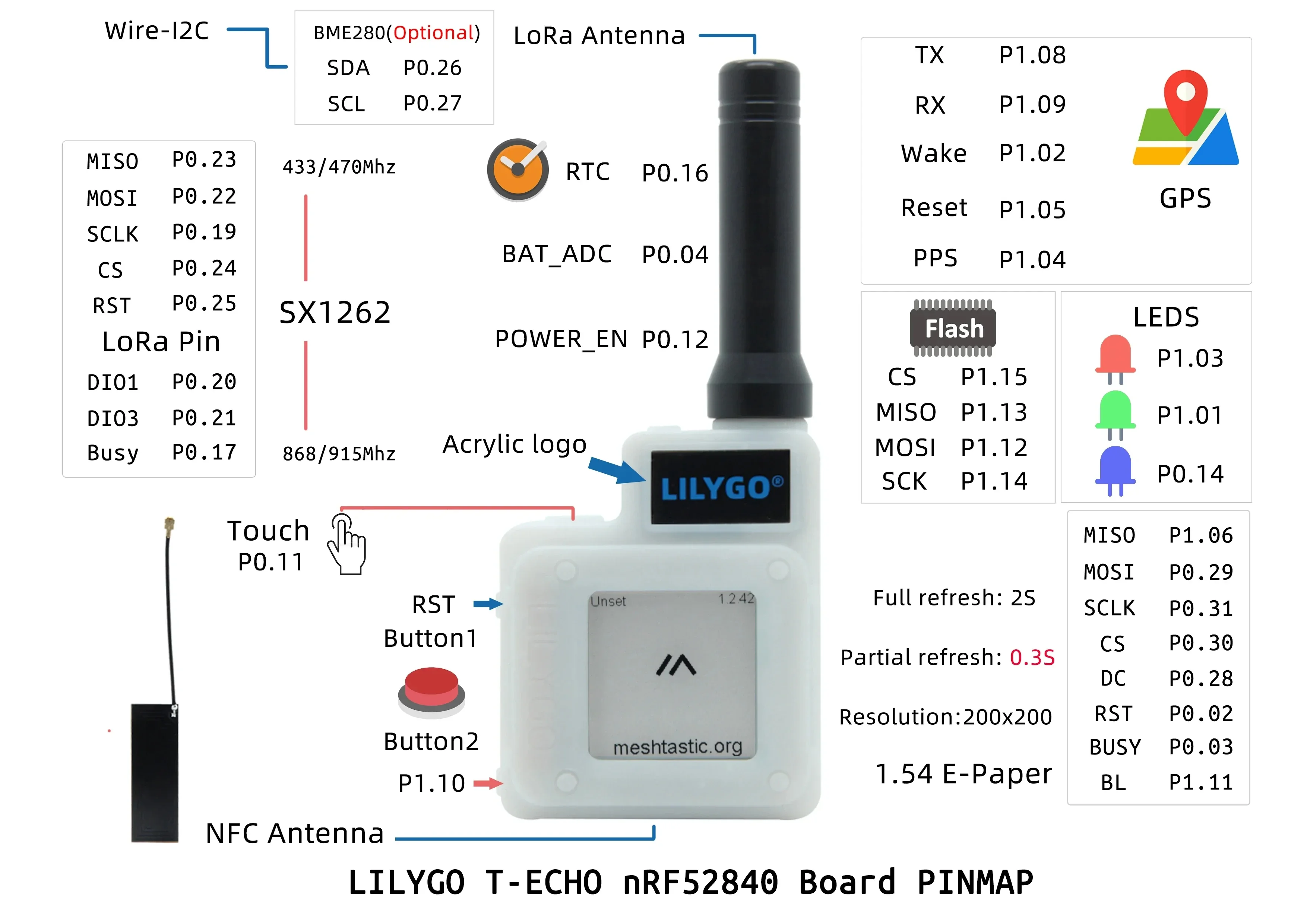

T-Echo Specifications:
– NRF52840 BLE/NFC
– L76K GPS module
– T-SX1262 LORA module
– 1 .54 E-paper with front LED screen light
– RTC PCF8563
– RGB LED
– RST button X1
– Custom button X1
– Touch button TTP223

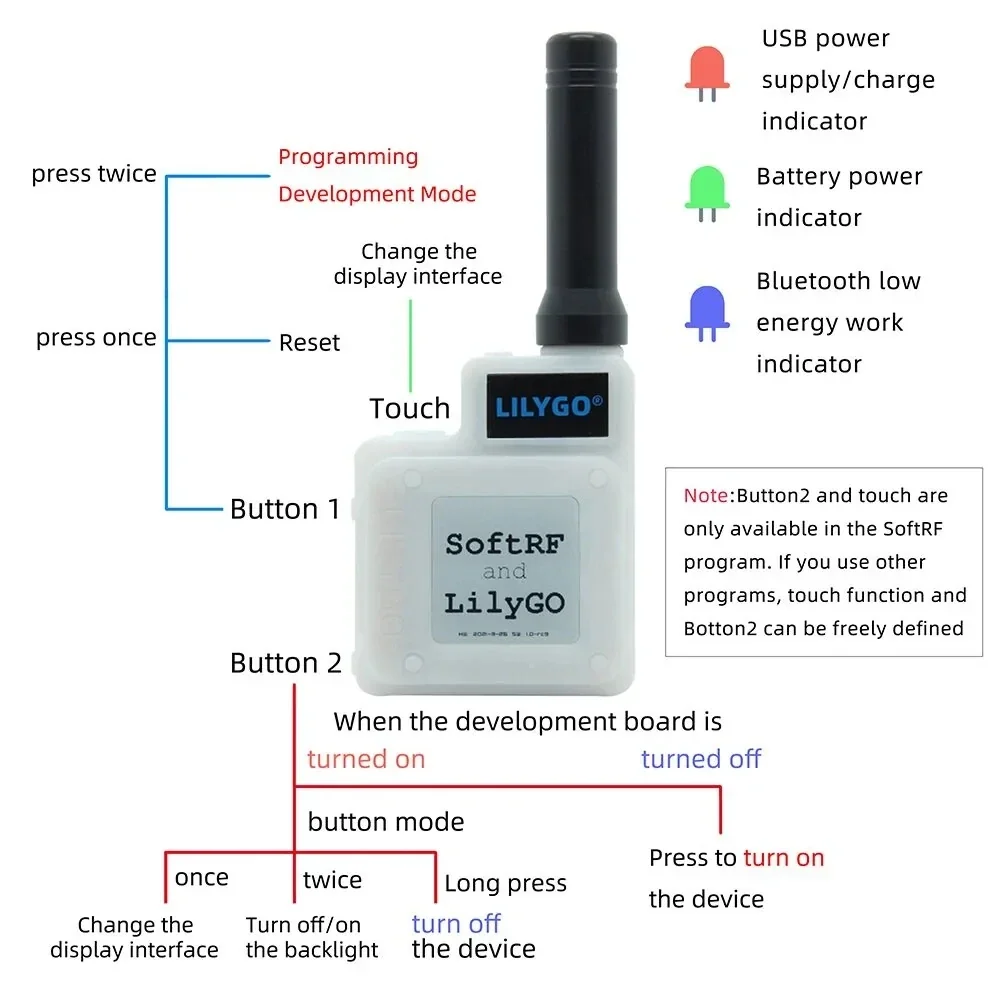

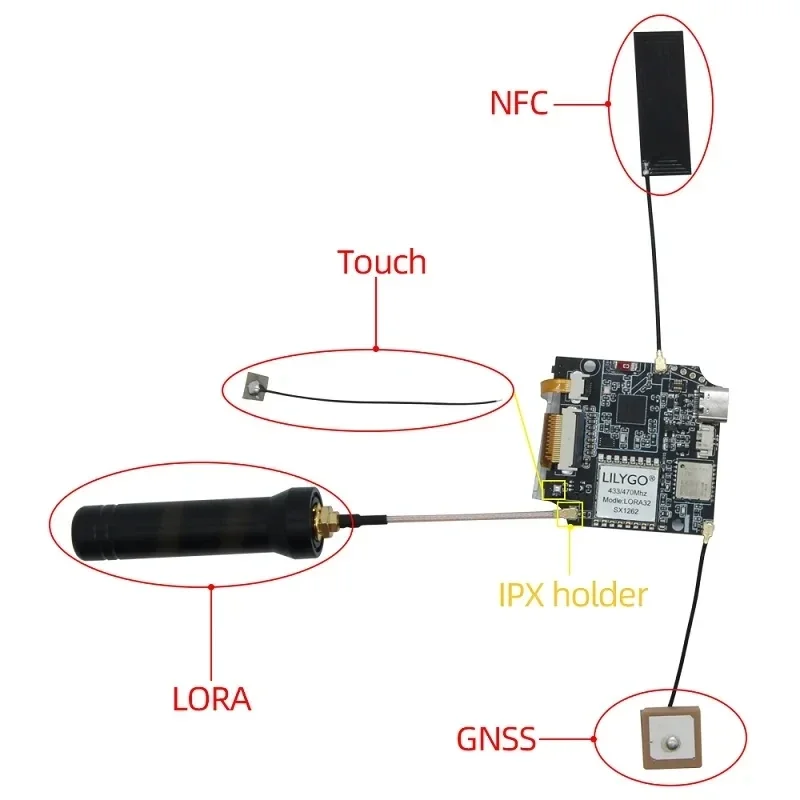

– IPX Antenna Base X3
– 1.25 pitch battery holder
– 12. 5V input Type-C USB
– 10pin 0.4 pitch BTB socket can be used to expand functional modules
Application scenarios:
DIY creation
lora networking
GPS positioning
IOT terminal controller
Stem education product
Github link:
Basic Example:
https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo
https://github.com/lyusupov/SoftRF/wiki/Badge-Edition
Meshtastic: https://github.com/meshtastic/Meshtastic-device/releases

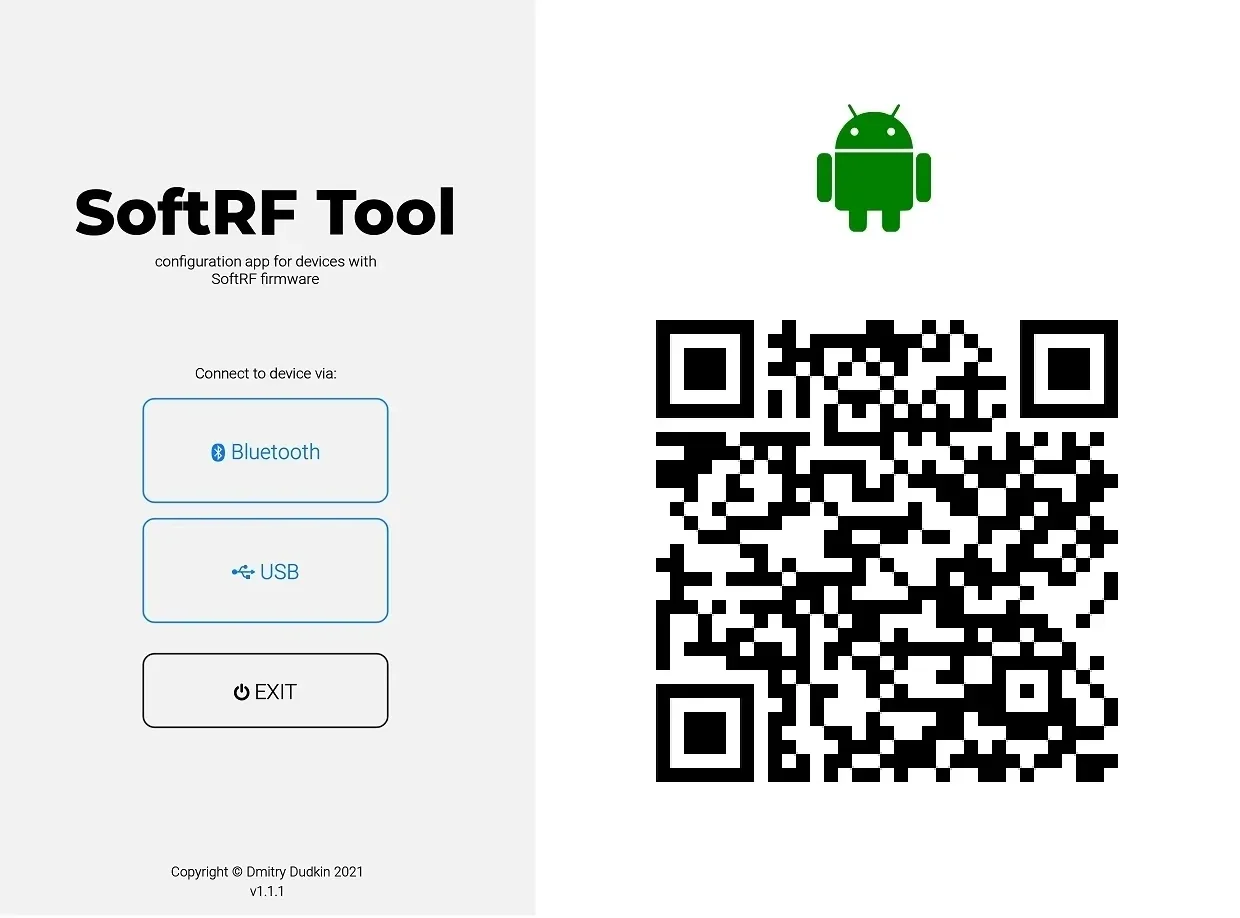

SoftRF: https://github.com/lyusupov/SoftRF/wiki/SoftRF-Configuration-Tool
Package includes:
1 X T-Echo / T-Echo Meshtastic BME280 Motherboard (optional)
1 X GPS Antenna
1 X LORA 915/868/433MHz Antenna (optional)
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X TYPE-C USB cable
1 X 850mA Capacity Battery

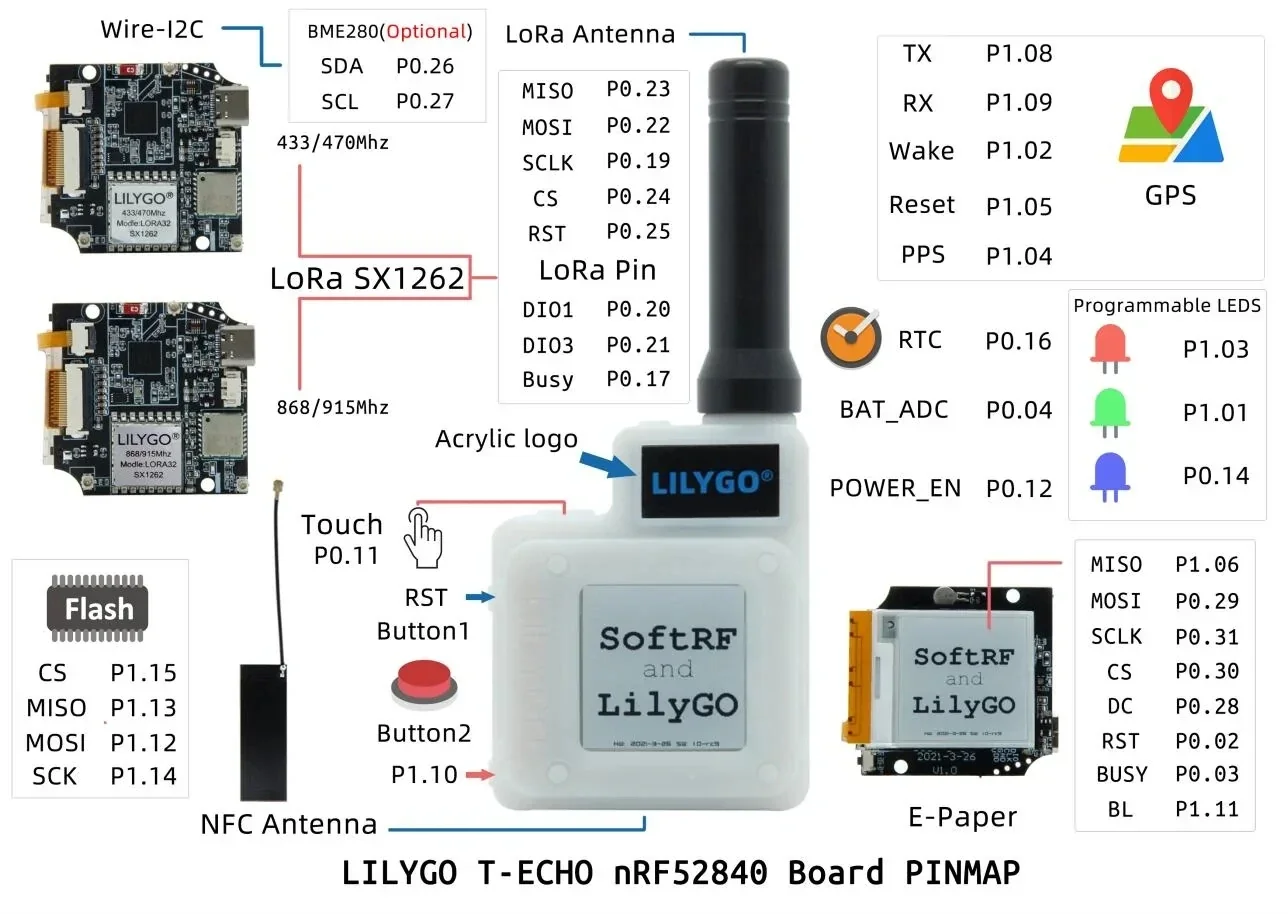

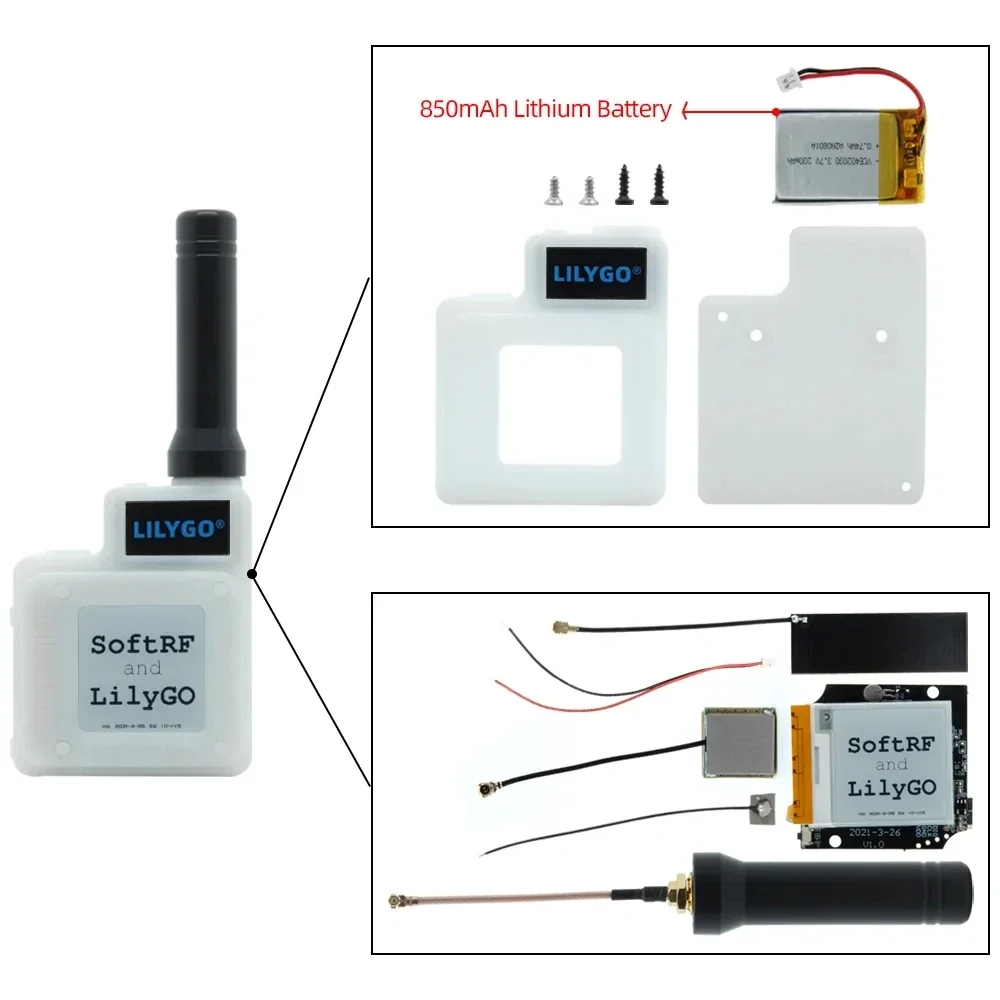

1 X 3D Printed Enclosure
